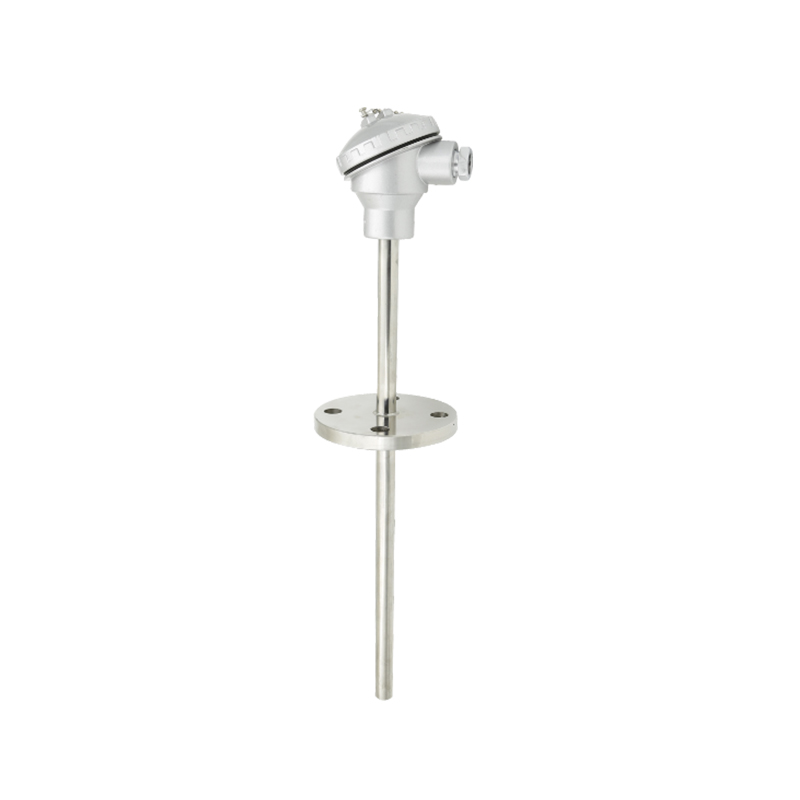

Waterproof flange type thermal resistance

Contact us
  • Waterproof flange type thermal resistance
  • Description
  • Inquiry
  • Thermal resistance species: Copper heat resistance
    platinum thermal heat resistance
  • Process connection: Screw or flange connection
  • Junction box: Water proof connector
  • flameproof terminal box or etc
  • Diameter: Copper heat resistance:12*1mm or customized
    platinum thermal resistance:16*1mm or 12*1mm
  • Circuit type: 2-, 3-, 4-wire
  • Tolerance class: A,B,C
  • Sensor: Pt10, Pt100, Pt50, Pt500, Pt1000, Cu50,Cu100
  • Protecting tube material: 304,316 stainless steel or etc
  • Insert depth: Optional
  • Thermocouple
  • Sensor: K,N,E,J,T,S,R,B,W3,W5
  • Process connection: Screw or flange
  • Junction box: Water proof connector
  • flameproof terminal box or etc
  • Tolerance class: I, II,P
  • Length: Optional
  • Protecting tube material: 304, 316
  • stainless steel or etc
  • Insert depth: Optional
