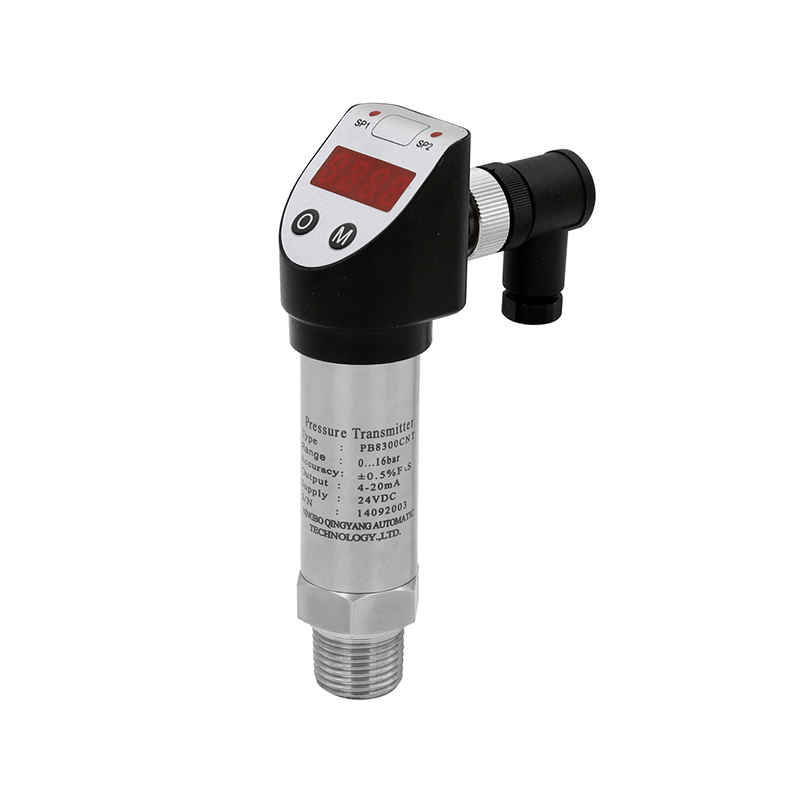

PB8900 pressure transmitter is a novel and small pressure transmitter. It can be equipped with one or two control or alarm NPN switch output or relay active contact output (one of which is connected to the negative pole of the power supply), and can have traditional 4~20mA pressure transmitter output and pressure switch function. Brand new on-site pressure display and function operation for easy setting of two-way control or alarm values over the full range. The use of GX12 (or M12) aviation plugs can effectively improve the waterproof and moisture-proof performance.The linearization accuracy of PB8900 pressure transmitter is better than 0.1%F·S, and the display accuracy is better than 0.5%F·S. This product can be widely used in medicine, light industrial machinery, ships, electric power, national defense, petroleum, chemical industry, metallurgy and other scientific research and production departments.
- Accuracy: 0.2%F·S, 0.5%F·S
- Linearity: Superior to 0.2%F·S
- Indication error: 0.5%F·S
- Measuring range: -0.1...0bar to -1...0bar 0...0.1bar to 0...600bar to -1...25bar relative 0...1bar to 0...35bar absolute
- Output: 4...20mADC
- Control output: PNP switch or relay contact
- Relay contact maximum current: 1A
- Ambient temp: -20...85℃
- Temperature drift: superior to ±0.02%F·S/℃
- stability: superior to 0.2%F·S for 1 year
- Power supply: 14 to 36VDC
- Load resistance: 0~600Ω
- Proof pressure: 150%F·S
- Storage temp: -40...125℃
