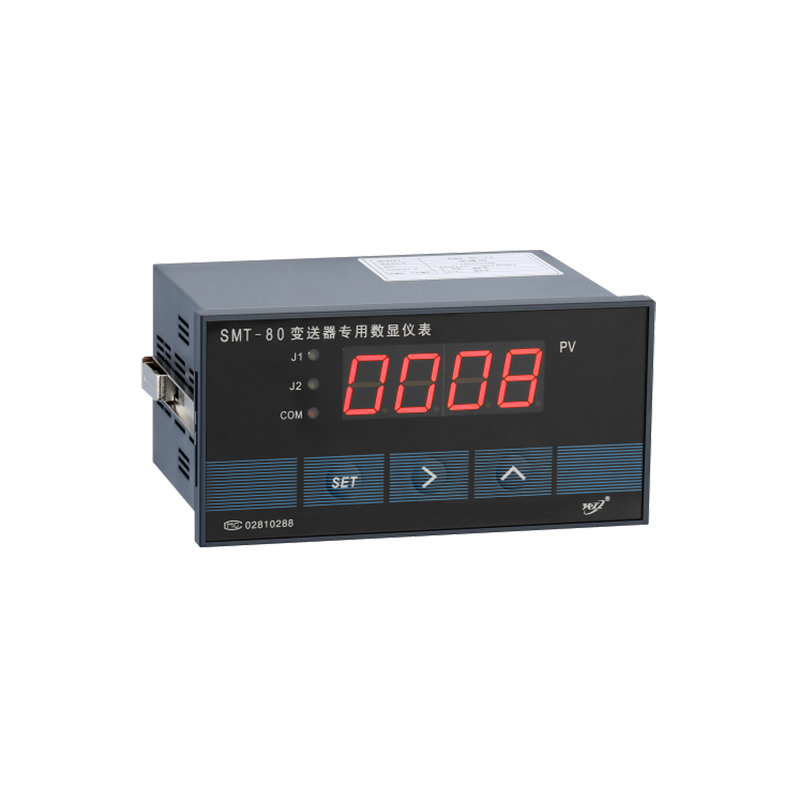

SMT series is a new generation of intelligent instrument products with programmable specifications and optional combination of functions. The main features are good versatility and fast response speed (mainly used for temperature, liquid level and pressure control). .
- Ambient temp: 0...50°C
- Relative humidity: 35%...85%RH
- Alarm range: can be setted in whole range
- The relay contact capacity of other instruments is AC 220V/3A
- Single-way input, LED display
- Multiple types of signal input available
- Thermal resistance\thermocouple signal resolution
- Switchable: 1°C or 0.1°C
- Upper/lower-limit alarm available with LED alarm lamp indication
- Voltage and current transducing output signal is selectable
- DC24V feed output is available for power distribution for transducer on the site
- Multiple sizes and styles are available for user's choice
- Password lock for parameters setting which would be Stored permanently in case Of power-off; parameters reset available
- Power supply: 220V±15% 50Hz
- Consume : 4W
- Ambient Temp: 0...50°C
- Relative humidity: 35% to 85%RH
