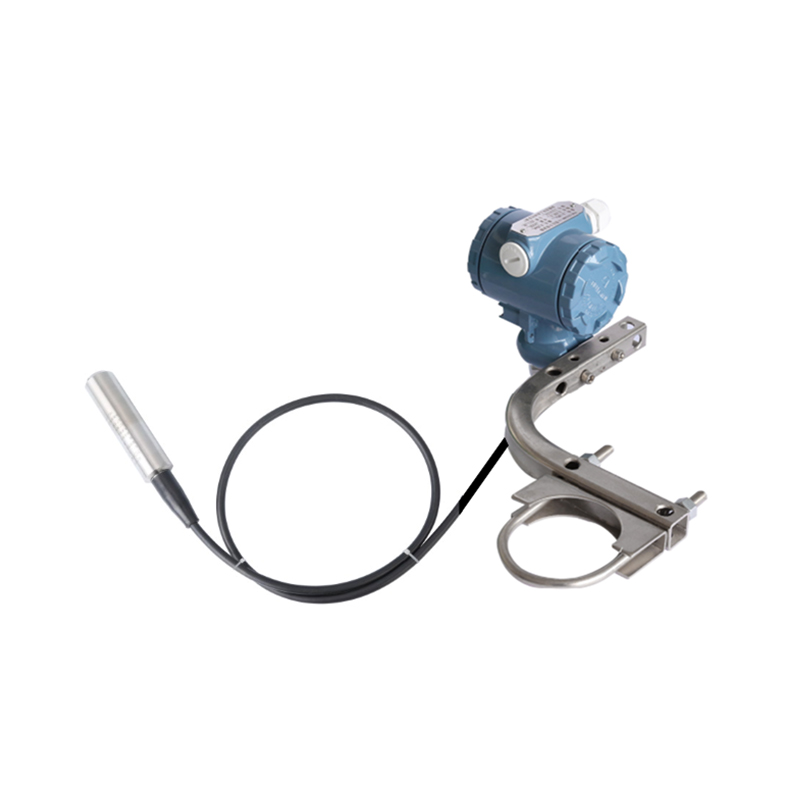

PB8600 series submersible hydrostatic level transmitter is composed of sensor, air guide cable, stainless steel cylinder and so on. Test the liquid level height by measuring the pressure at the position of the sensor, and convert the liquid level height into a standard electrical signal output. Stable performance, good reliability, long service life, the internal circuit design meets the requirements of intrinsically safe explosion-proof, and its excellent performance can completely replace imported submerged (or submerged) static liquid level transmitters, mainly used for measuring water, Level height or depth of oil etc.
- Accuracy: 0.5%F·S
- Measuring range: 0...5m to 0...1500m
- Linearity: superior to 0.2%F·S
- Temperature drift: <superior to ±0.03%F·S/℃
- Stability: superior to 0.5%F.S for 1 year
- Response time: 10mS
- Power supply: 12 to 36VDC
- Output: 4...20mADC
- Load resistance: 0~600Ω
- Liquid temp: -10...60℃
- Compensated temp: -10...60℃
- Storage temp: -45...125℃
- Installation position: direct into the bottom of the liquid
- Housing material: 304 stainless steel or 316 stainless steel
- Diaphragm material: 316L stainless steel
- Breathing cable material: polythene or PTFE
- Weight: Stainless steel pipe(G1): about 300g Breathing cable(G2): about 65g/m Junction box(G3): about 300-700g
- Gross weight(G): G=G1+G2*length(m)+G3
- Power consume: <5W(24VDC)
