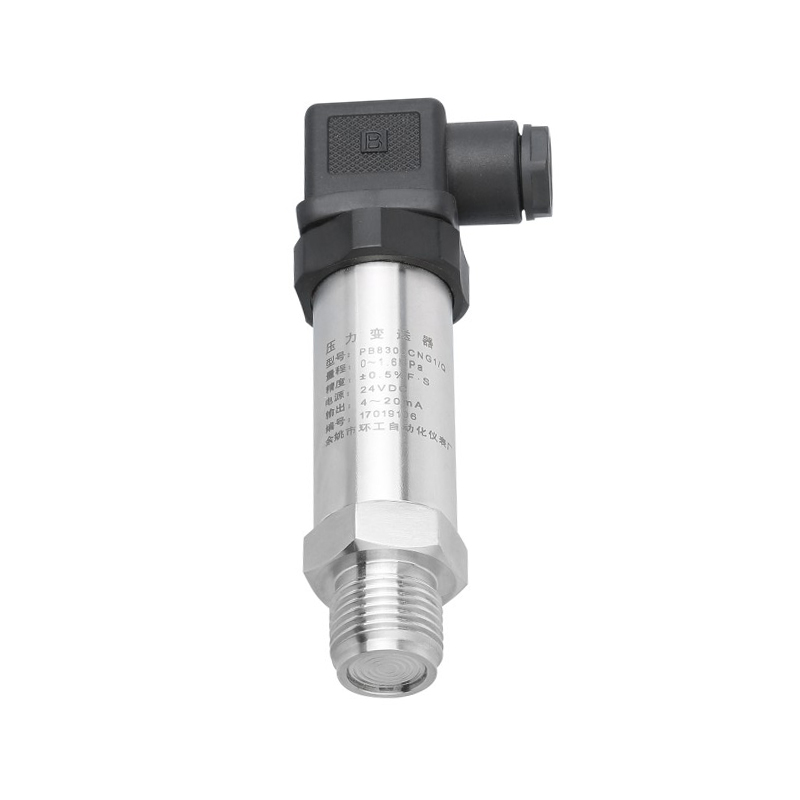

PB8300 series diffused silicon pressure transmitter is a practical and compact pressure transmitter. It uses high-precision, high-stability and high-reliability diffused silicon pressure sensing elements to measure liquid or gas pressure and various It is an on-site remote pressure and liquid level measuring instrument that converts the pressure or liquid level into a standard electrical signal. It is mainly used for mechanical equipment and other occasions with small installation space. It adopts a unique junction box for installation and maintenance. Convenient, because of its excellent performance, it can replace high-performance imported pressure transmitters.
- Accuracy: 0.25%F·S , 0.5%F·S
- Measuring range: -0.1...0bar to -1...0bar 0...0.1bar to 0...600bar to -1...25bar relative 0...1bar to 0...35bar absolute
- Linearity: Superior to 0.25%F·S
- Stability: Superior to 0.25%F·S
- Temperature drift: Superior to ±0.75%(0...50℃)
- Response time: ≤10mS
- Power supply: 24VDC or (12VDC...36VDC optional)
- Output: 4...20mA (or 1...5V)
- Load resistance: 0~600 Ω
- Proof pressure: 150%F·S
- Ambient temp: -20...85℃
- Compensated Temp: -20...85℃
- Storage temp: -45...125℃
- Process connection: M20*1.5 male or 1/2 NPT male , Flange or clamp or customized
- Electric connection: DIN43650-A/ISO standard junction box
- Wetted parts: 304 stainless steel
- Diaphragm Material: 316L stainless steel
- Housing Material: 304 stainless steel or 316 stainless steel
- Power Consume: <0.5W (24VDC)
