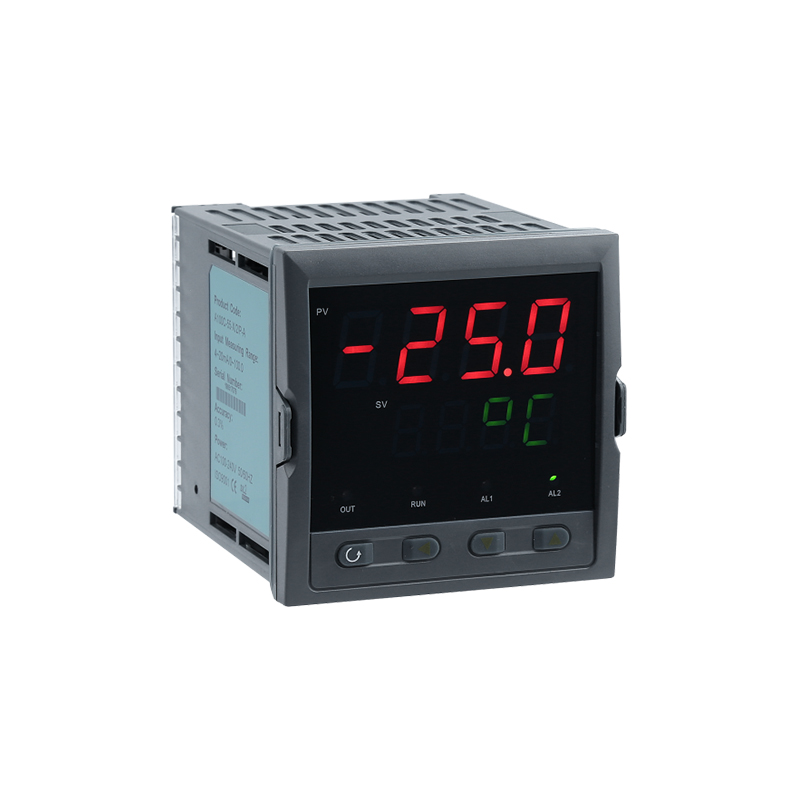

русский-1.jpg?imageView2/2/format/jp2 "HGWA(96x96) digital display control instrument")
HGW series is a new generation of intelligent instrument products with programmable specifications and optional combination of functions. The main features are good versatility and fast response speed.
display and control.
- Accuracy: 0.5%F·S ; 0.2%F·S
- Display range : -999...3999
- Alarm range : can be setted in whole range
- Maxium switching current/voltage: 3A/220V
- SCR signal : 5V...40μS or 100mA
- Solid state relay signal : 15V±3v/ 30mA
- Main output: 4~20mA and RS485 optional
- Alarm output: deviation alarm, absolute value alarm, normally closed
- Switch, normally open switch can be setted
- Power supply: 220V±15% 50Hz or 12~36VDC
- Consume : 4W
- Ambient Temp: 0...50°C
- Relative humidity: 35% to 85%RH
