What is the impact of electromagnetic interference on the performance of temperature sensors, and how can it be mitigated?

Electromagnetic interference can significantly impact the performance of temperature sensors in several ways. Understanding these impacts and implementing mitigation strategies is crucial for ensuring accurate and reliable temperature measurements. Here's a detailed overview:

Signal Distortion: Electromagnetic interference (EMI) can significantly distort the analog signals produced by temperature sensors. These sensors generate a voltage or current proportional to the measured temperature, which can be disrupted by external electromagnetic fields. The distortion can cause inaccuracies in the temperature data, bring about errors in the control systems that rely on these readings. For example, in a manufacturing process, incorrect temperature readings could result in improper heating or cooling, potentially ruining the product or causing safety hazards.

Noise Addition: EMI can introduce additional noise into the sensor’s signal path. This noise can manifest as random fluctuations or periodic disturbances that obscure the true temperature measurement. In environments with high levels of electromagnetic interference, such as industrial plants with heavy machinery, the noise can be substantial, making it difficult for the system to discern the actual temperature. This can bring about unreliable and erratic temperature data, affecting the performance of critical processes and systems.

Loss of Data Integrity: In digital temperature sensors, EMI can corrupt the data being transmitted between the sensor and the control system. Digital sensors use communication protocols like I2C, SPI, or UART to send data. EMI can interfere with these signals, causing bits to flip and data packets to become corrupted. This can result in erroneous temperature readings being recorded, triggering incorrect responses from automated systems. For instance, a corrupted temperature reading might cause a cooling system to overcompensate, bring about energy waste and potential equipment damage.

Component Damage: High levels of EMI can induce excessive currents and voltages in the sensor’s electronic components, potentially bring about damage. Sensitive components, such as amplifiers and analog-to-digital converters, can be particularly vulnerable. Prolonged exposure to strong electromagnetic fields can degrade these components over time, reducing the sensor’s accuracy and reliability. In severe cases, EMI can cause immediate and catastrophic failure of the sensor, necessitating costly replacements and repairs.

Shielding: Shielding is a fundamental technique for protecting temperature sensors from EMI. This involves enclosing the sensor and its wiring in conductive materials, such as metal enclosures or braided shields, which act as barriers to electromagnetic fields. Shielded cables are commonly used to prevent EMI from affecting the signal transmission. For example, using a copper or aluminum shield can effectively block external electromagnetic waves, ensuring that the sensor’s signal remains clean and accurate.

Twisted-Pair Cabling: Twisted-pair cabling is a simple yet effective method to reduce the impact of EMI. By twisting two wires together, the electromagnetic fields induced in each conductor are balanced and cancel each other out. This technique is especially beneficial for analog signals, where it helps maintain signal integrity over long distances. Twisted-pair cables are widely used in industrial environments where high levels of EMI are present, such as near motors and heavy machinery.

Proper Grounding: Ensuring proper grounding is crucial for mitigating EMI. Grounding involves creating a direct electrical connection between the sensor’s circuitry and the earth. This connection provides a path for electromagnetic interference to dissipate safely into the ground, away from the sensitive sensor components. A well-grounded system helps maintain the accuracy of temperature readings by minimizing the impact of EMI. Regular inspection of grounding connections is necessary to ensure they remain effective over time.

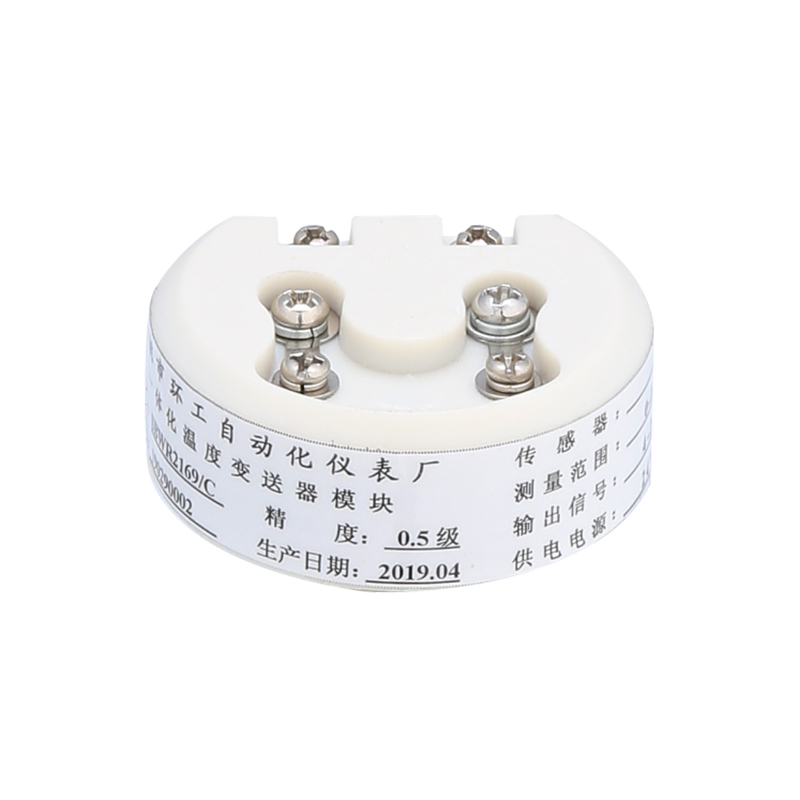

SBWR2169 temperature transmitter
